UI Implementation in Android with Livedata and ViewModel

Introduction

In earlier blog, UI implementation in Android – Fragment, View binding and Navigation, I have explained the main idea:

How fragments only displays view but also provides more flexibility to program View and demonstrate its usefulness when implementing navigation between different pages or Views.

In this blog, I will explore about sharing data between Fragments, and make changes to UI via ViewModel, and LiveData.

Concepts

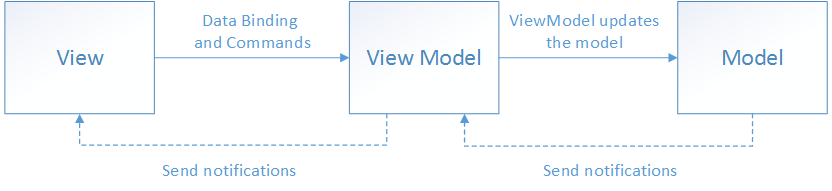

Model - View - ViewModel (MVVM) architecture

Source: Model-View-ViewModel - .NET | Microsoft Learn

This architecture defines a pattern to update View based on (Data) Model, and View Model stands as the middleman.

the interaction between View and ViewModel follows could follow Observer-Subscriber patterns:
- View registers to be subscriber to ViewModel.
- ViewModel updates the View by callbacks, notification the subscriber.
the interaction between View and ViewModel could follow a more direct approach:
- ViewModel requests data from Model via get/set.
- Model returns data.

MVVM doesn't limit its components' interactions to the above method of communications. Various blogs discuss of different alternatives. For example, this blog What Is MVVM (Model-View-ViewModel)? refers that View interact with ViewModel via Data Binding, while View Model interacts with Model by Observer-Subscriber patterns.

Note: VMVM note only allows a single Fragment to interact with data but also allows sharing data between Fragments. It could be implemented by using "shared" ViewModel between 2 Fragments.

`ViewModel` in Android

ViewModel is a plain class that holds the data you display in UI. It allows:

holding data persistently through various Fragment's lifecycle or Activity 's lifecycle.
accessing data in Model.

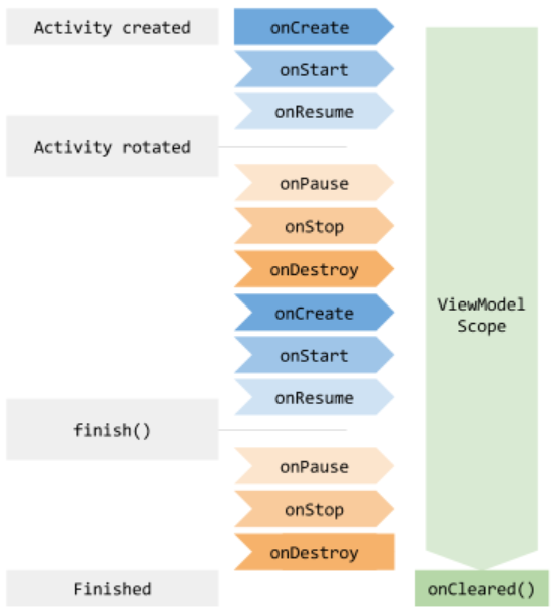

The following illustrates the ViewModel's scope which is unchanged throught various Activity 's lifecycles.

Source: ViewModel overview | Android Developers

A ViewModel is always created in association with a scope (a fragment or an activity) and will be retained as long as the scope is alive. The following shows an EmployeeInfoViewModel be property and delegated by activityViewModels

class UpdateInfoFragment : Fragment {
     private val employeeInfoViewModel: EmployeeInfoViewModel by activityViewModels()
}

activityViewModels is Kotlin property delegate from the fragment-ktx artifact to retrieve the ViewModel in the UpdateInfoFragment scope.
EmployeeInfoViewModel is the class that inherits ViewModel. Note that ViewModel itself is a plain class that only means to hold data within its scope. To actually get/set data or interact with Model we have to provide such implementation! This is when LiveData come to help.

`LiveData` in Android

We have MutableLiveData that inherits LiveData in Android framework. MutableLiveData expose public functions to be used.

LiveData:

holds individual data fields of ViewModel, but can also be used for sharing data between different modules in your application in a decoupled fashion.

public abstract class LiveData<T> {
     volatile Object mPendingData = NOT_SET;
}

holds a map of observers and counts number of observers. Thus any Fragment that request data from Model should register observer to LiveData first.

public abstract class LiveData<T> {
     private SafeIterableMap<Observer<? super T>, ObserverWrapper> mObservers =
            new SafeIterableMap<>();
}

notifies changes of data in asynchronous manner.

The following illustrates call flows:

Sample app MyID

MyID app includes 2 fragments: HomePageFragment and UpdatePageFragment.

BottomNavigationMenu provides navigation between 2 fragments and was already described in the blog UI implementation in Android – Fragment, View binding and Navigation
UpdatePageFragment will receive input from user and can update the changes on HomePageFragment.
EmployeeInfoViewModel is the "shared ViewModel" for both fragments.
- UpdatePageFragment calls EmployeeInfoViewModel to update data. It provides the data to EmployeeInfoViewModel
- EmployeeInfoViewModel receives new data and updates them to the `mObserver` map.
- HomePageFragment receives the new data via callback.
The Model are just simple data, String. At this point we don't have to implement Model class.

Implementing View Model

EmployeeInfoViewModel.kt

package com.example.myid.viewmodel

import androidx.lifecycle.LiveData
import androidx.lifecycle.MutableLiveData
import androidx.lifecycle.ViewModel

class EmployeeInfoViewModel : ViewModel() {
    private val _name = MutableLiveData<String>()
    val name: LiveData<String> get() = _name

    private val _department = MutableLiveData<String>()
    val department: LiveData<String> get() = _department

    private val _employeeId = MutableLiveData<String>()
    val employeeId: LiveData<String> get() = _employeeId

    fun updateName(newName: String) {
        _name.value = newName
    }

    fun updateDepartment(newDepartment: String) {
        _department.value = newDepartment
    }

    fun updateEmployeeId(newEmployeeId: String) {
        _employeeId.value = newEmployeeId
    }
}

Using View Model class in fragments

both fragments has

private val employeeInfoViewModel: EmployeeInfoViewModel by activityViewModels()

both fragments implements their interaction with ViewModel in onCreateView function.

the observer function has only 1 variable because the other is skipped, allowable by Kotlin. The second parameter is skipped:

//function prototype:
public void observe(@NonNull LifecycleOwner owner, @NonNull Observer<? super T> observer)
// actual function call:
employeeInfoViewModel.department.observe(viewLifecycleOwner)

HomePageFragment registers observer to LiveData, which is name, department, employeeId. The observers will receive data via callback. For example:

employeeInfoViewModel.name.observe(viewLifecycleOwner) {
            // HomePageFragment receives the new data via callback
            name -> binding.textViewName.text = "Name: $name"
        }

HomePageFragment.kt

package com.example.myid

import android.os.Bundle
import android.view.LayoutInflater
import android.view.View
import android.view.ViewGroup
import androidx.fragment.app.Fragment
import androidx.fragment.app.activityViewModels
import com.example.myid.databinding.FragmentHomePageBinding
import com.example.myid.viewmodel.EmployeeInfoViewModel

class HomePageFragment : Fragment() {

    private var _binding: FragmentHomePageBinding? = null
    private val binding get() = _binding!!
    private val employeeInfoViewModel: EmployeeInfoViewModel by activityViewModels()

    override fun onCreateView(
        inflater: LayoutInflater, container: ViewGroup?,
        savedInstanceState: Bundle?
    ): View {
        _binding = FragmentHomePageBinding.inflate(inflater, container, false)
        return binding.root
    }

    override fun onViewCreated(view: View, savedInstanceState: Bundle?) {
        super.onViewCreated(view, savedInstanceState)

        employeeInfoViewModel.name.observe(viewLifecycleOwner) {
            // HomePageFragment receives the new data via callback
            name -> binding.textViewName.text = "Name: $name"
        }

        employeeInfoViewModel.department.observe(viewLifecycleOwner) {
            department ->
            binding.textViewDepartment.text = "Department: $department"
        }

        employeeInfoViewModel.employeeId.observe(viewLifecycleOwner) {
            employeeId ->
            binding.textViewEmployeeId.text = "Employee ID: $employeeId"
        }
    }

    override fun onDestroyView() {
        super.onDestroyView()
        _binding = null
    }
}

UpdatePageFragment.kt

package com.example.myid

import android.os.Bundle
import android.view.LayoutInflater
import android.view.View
import android.view.ViewGroup
import androidx.fragment.app.Fragment
import androidx.fragment.app.activityViewModels
import com.example.myid.databinding.FragmentUpdatePageBinding
import com.example.myid.viewmodel.EmployeeInfoViewModel

class UpdatePageFragment : Fragment() {

    private var _binding: FragmentUpdatePageBinding? = null
    private val binding get() = _binding!!
    private val employeeInfoViewModel: EmployeeInfoViewModel by activityViewModels()

    override fun onCreateView(
        inflater: LayoutInflater, container: ViewGroup?,
        savedInstanceState: Bundle?
    ): View {
        _binding = FragmentUpdatePageBinding.inflate(inflater, container, false)
        return binding.root
    }

    override fun onViewCreated(view: View, savedInstanceState: Bundle?) {
        super.onViewCreated(view, savedInstanceState)
        // UpdateInfoFragment calls EmployeeInfoViewModel to update data
        binding.buttonUpdate.setOnClickListener {
            employeeInfoViewModel.updateName(binding.editTextName.text.toString())
            employeeInfoViewModel.updateDepartment(binding.editTextDepartment.text.toString())
            employeeInfoViewModel.updateEmployeeId(binding.editTextEmployeeId.text.toString())
        }
    }

    override fun onDestroyView() {
        super.onDestroyView()
        _binding = null
    }
}

Note: The name of fragment file must be consistent and will be used in nav_graph.xml

fragment_home_page.xml:

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    android:id="@+id/main_page_id"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="vertical"
    android:padding="16dp"
    android:gravity="center">
    <com.google.android.material.card.MaterialCardView
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_gravity="center_horizontal"
        app:cardCornerRadius="20dp"
        app:strokeWidth="1dp"
        app:strokeColor="#002FFF"
        android:padding="2dp">
        <ImageView
            android:id="@+id/id_image"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:contentDescription="ID Image"
            android:src="@drawable/image_id" />
    </com.google.android.material.card.MaterialCardView>
    <LinearLayout
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:orientation="vertical"
        android:layout_gravity="center" />
    <TextView
        android:id="@+id/text_view_name"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="Name："
        android:textAlignment="center" />
    <TextView
        android:id="@+id/text_view_department"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="Department："
        android:textAlignment="center" />
    <TextView
        android:id="@+id/text_view_employee_id"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="Employee ID："
        android:textAlignment="center" />
</LinearLayout>

fragment_update_page.xml:

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="vertical"
    android:padding="16dp"
    android:gravity="center">
    <!-- EditText for Name -->
    <EditText
        android:id="@+id/edit_text_name"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:hint="Enter Name" />
    <!-- EditText for Department -->
    <EditText
        android:id="@+id/edit_text_department"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:hint="Enter Department" />
    <!-- EditText for Employee ID -->
    <EditText
        android:id="@+id/edit_text_employee_id"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:hint="Enter Employee ID" />
    <!-- Button to Update -->
    <Button
        android:id="@+id/button_update"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="Update" />
</LinearLayout>

Note: As discussed in earlier blog, View binding was used. Thus, the naming of those XML files are important and will be used to generate binding respective classes

binding fragment_home_page.xml generates FragmentHomePageBinding class.
binding fragment_update_page.xml generates FragmentUpdatePageBinding class.

Link to MyID app source code: Projects/Android/MyID

Conclusion:

At this point, UI implementation in Android – Fragment, View binding and Navigation and this blog have discussed the followings:

How to displayed UI from View. How LayoutInflater generates View from XML resource file.
How a Fragment is more powerful than View and should be used to display UI. A use case, fragment navigation, is implemented to demonstrate such usefulness.
- In addition, how View binding, NavController, NavHostFragment are usefull tool to implement the use case.
How ViewModel and the VMVM architecture helps with communication between UI and data. A use case, sharing data between fragments, is demonstrated.

In the next blog, I will demonstrate Data binding.
